More than a simple console,
Gaffers Control is the essential tool to control all DMX devices in a simple and easy way.

Description and functions

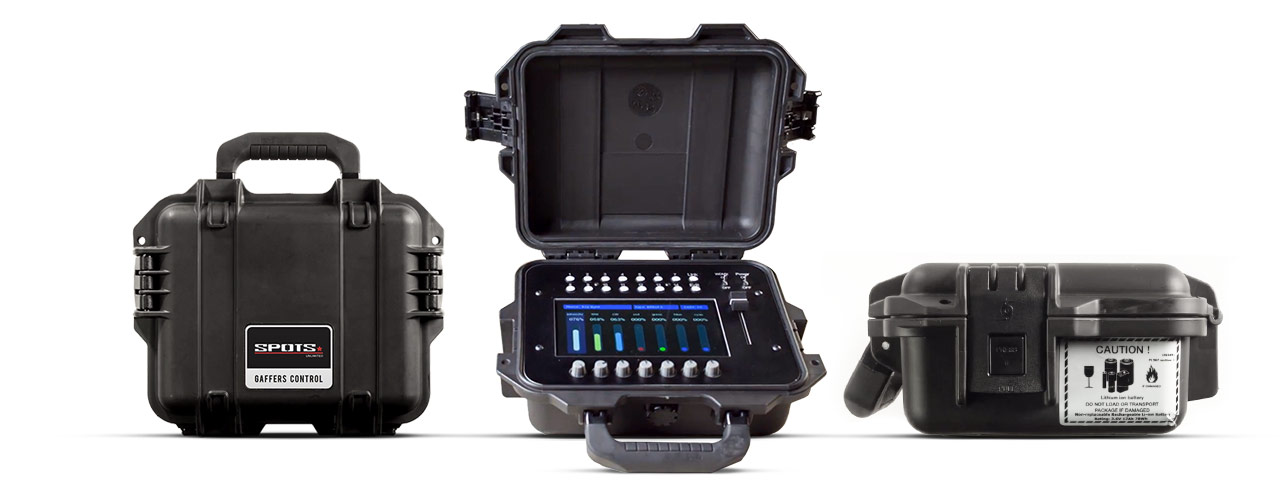

  • "All-in-one" DMX console in StormCase™ casing
  • 7” capacitive touch screen 800x480 pixels
  • Integrated CRMX LumenRadio™ transmitter
  • Integrated Lithium-ion 70 W/h battery
  • 14 addressable banks/512 DMX addresses
  • Integrated DMX library
    • Including:
      Arri, BB&S, Creamsource, Cineo, DMG, Astera, Quasar science, Carpetlight, Litegear, Kino Flo, Litepanels, Dedolight, Alladin, Rotolight, clay paky, luxli and more….
  • Update of DMX library via USB
  • Master setting via linear potentiometer
  • Parameter setting via touch screen or buttons
  • DMX outputs on XLR 5Pin
  • Duration of operation on battery: up to 10 hours.

Technical specifications

  • Power consumption 15 W
  • Supply voltage: 100-240 VAC 50/60 Hz
  • Type of battery: Li-ion 70 W/h
  • Duration of full charge 5h
  • Range: up to 120 m in an open area depending on the receivers
  • Radio interface: 2.4G hz (2,402-2,480 Ghz)
  • Dimensions: 300 x 249 x 119 mm
  • Weight: 2,725 g

Compatibility

  • CRMX compatible devices by Lumen Radio™
    • Lightfixtures with integrated CRMX receiver:
      Arri S360 - Kino Flo – Litepanels gemini - DMG lumiere MIX-Cineo – Litegear – Carpetlight - Creamsource Sky -Astera -Quasar science
